DX double JCH roll forming machine

  • DX double JCH roll forming machine
  • DX double JCH roll forming machine
  • DX double JCH roll forming machine
  • DX double JCH roll forming machine

DX double JCH roll forming machine

    Payment Type: L/C,T/T,Money Gram
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 40 Days
    Packaging: Nude packing
    Productivity: 20
    Brand: Dixin
    Transportation: Ocean
    Place of Origin: Cangzhou city,Hebei province,China
    Supply Ability: 20/month
    Certificate: ISO CE
    HS Code: 84552210
    Port: TIANJIN

Basic Info

Model No.: DX JCH

Product Description

Double JCH roll forming machine

Product Description

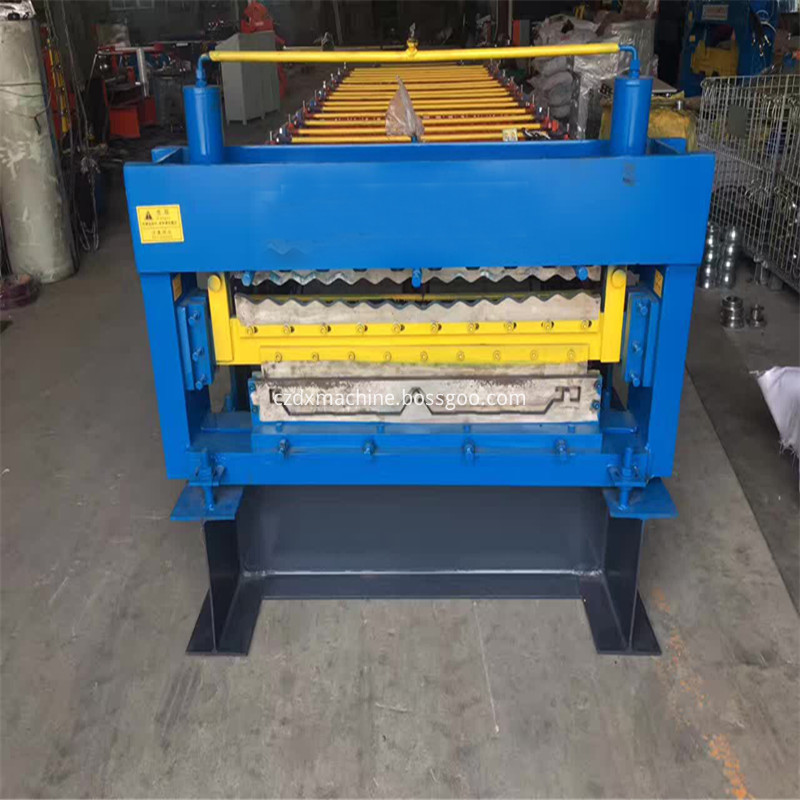

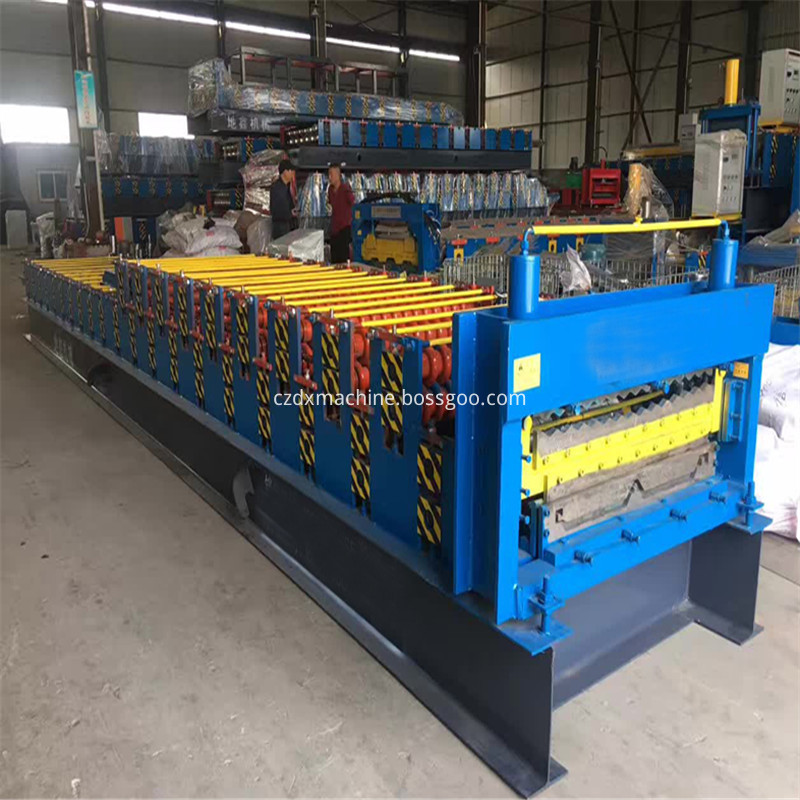

DX Double JCH roll forming machine

China Factory Making Building Material Double Layer Wall Panel Metal and jch steel Roofing Corrugated Tile Roll Forming Machine with the capable of forming a limited site area in two sections, and can quickly transform products, affordable, can be the perfect combination of the two models of devices into one, two plate replacement time becomes shorter, and also improve the rate of output.

 Double JCH Double JCH


Detailed Images



Manual Un-coiler

◊ Max Capacity: 5000kgs

◊ Inner diameter of coil: 400-600mm

◊ Manual with brake

Leveling Device

◊ Ensure the material level and straight

◊ The width can be adjusted

Auto Main Forming System

◊ Max Feeding width:1220 mm

◊ Product width: 1000 & 1020 mm

◊ Thickness of sheet: 0.2-1.0mm

◊ Motor Power: 5.5 kw forming system

◊ Roller material: C45 steel

◊ Diameter of shaft: Upper level 95 mm Down level 95 mm

◊ Forming station: Upper level 12 stations. Down level 12 stations.

◊ Base Frame: 360 H steel welded..

Hydraulic Cutting Device

◊ Cutting way: pause to cut.

◊ Oil pump station 1set.

◊ Hydraulic power: 4 kw hydraulic system.

◊ Blade Material: CR12 with heat treatment HRC60-62.

Electrical System

◊ Control system: HMI & PLC control panel.

◊ Power: 440V 50Hz (as per local requirement)

Run-out Table

◊ Frame: 8# steel groove welded

◊ Roller type.

◊ Quantity: 1 pc

Packing & Delivery



Plastic Packing / Common Packing. Water-proof, Rust Prevention and Dust Prevention.

>By sea or other ways. In general, by sea, the port of loading is XINGANG PORT. It is only need 2 hours from our Company and Factory to Xingang Port, Tianjin City.

Packing Detail




Our Company


Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China


Certificate

FQA

Q: How can I contact you?

A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you

Q: What is the status of After-sale Services for customers and machineries?

A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.

Q: How to visit our company?

A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
